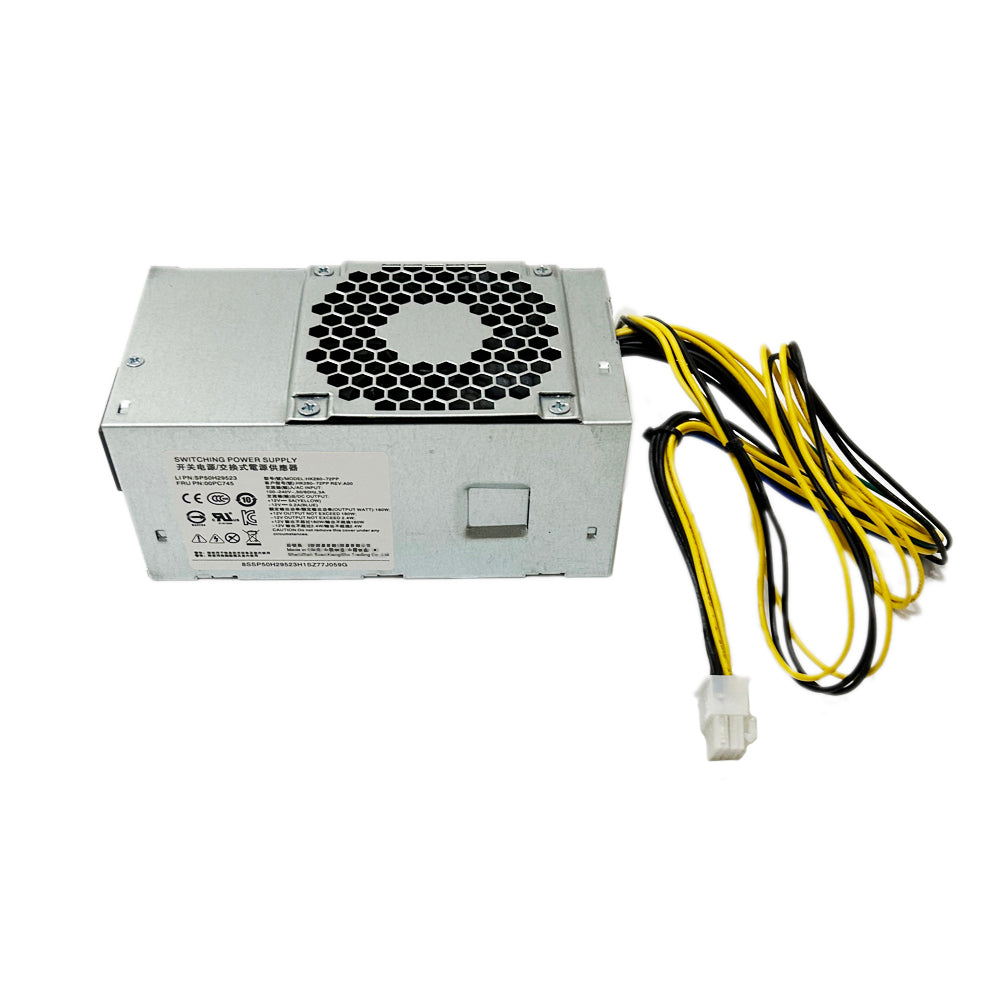

Lenovo TFX Desktop Power Supply Replacement Guide – 180W PA-2181-2 for Qitian & Tianyi Series
Share
Product link: https://nadalan-power.com/products/lenovo-power-supply-pa-2181-2
Is Your Lenovo TFX Desktop Having Power Issues? Here‘s Your 180W Replacement Guide
If you own a Lenovo Qitian (M series), Tianyi 510, or H3060/G5060 desktop with a TFX form factor power supply and are experiencing power failures, random shutdowns, or simply need a spare PSU, you’ve come to the right place.
Lenovo TFX desktops use specific power supply designs that are different from standard ATX units. Finding the correct replacement can be challenging because these units use proprietary 10-pin connectors and the TFX form factor.
This guide will help you quickly identify if the 180W PA-2181-2 Power Supply is the right match for your Lenovo computer.
Quick Compatibility Check
This 180W TFX power supply is specifically designed for the following Lenovo systems:
Lenovo Qitian Series (启天系列):
| Series | Compatible Models |
| Qitian M300 Series | M310 |
| Qitian M400 Series | M415, M425 |
| Qitian M500 Series | M510 |
| Qitian M600 Series | M610 |
| Qitian M700 Series | M710s |
| Qitian B Series | B415 TFX |
Lenovo Tianyi Series (天逸系列):
| Series | Compatible Models |
| Tianyi 510 | Tianyi 510 (dedicated) |
Lenovo H Series:
| Series | Compatible Models |
| H Series | H3060, G5060 |
⚠️ Important: This power supply is a TFX 10-pin dedicated power supply. It will NOT work with standard ATX motherboards.
Compatible Power Supply Models
This power supply replaces the following Lenovo power supply models:
| Model Number | Compatible? |
| HK280-72PP | ✅ Yes |
| PA-2181-2 | ✅ Yes (main model) |
| PCG010 | ✅ Yes |
| FSP180-20TGBAB | ✅ Yes |
| HK280-73PP | ✅ Yes |
Compatible Material Code / Part Number:
| Part Number | Compatible? |
| 00PC745 | ✅ Yes |
💡 Tip: Simply remove your old power supply and check the sticker on top. If you see HK280-72PP, PA-2181-2, PCG010, FSP180-20TGBAB, HK280-73PP, or 00PC745, this replacement will work perfectly.
Key Specifications at a Glance
| Specification | Detail |
| Power Output | 180W |
| Model Numbers | PA-2181-2 (and 4+ compatible models) |
| Input Voltage | 110-220V |
| Dimensions (L×W×H) | 150 × 64 × 82 mm |
| Weight | 1 kg |
| Form Factor | TFX (Thin Form Factor) |
| Application | Lenovo Qitian, Tianyi, H series desktops |
Connector Configuration – The Most Important Check
| Interface Type | Connector | Quantity | Cable Length |
| Motherboard Main Power | 10-pin (proprietary) | 1 | 31 cm |
| CPU Power | 4-pin | 1 | 60 cm (ultra-long) |
⚠️ Special Note: This power supply uses a proprietary 10-pin Lenovo TFX connector – not the standard 24-pin ATX connector. Do not attempt to use this on a standard motherboard.
Ultra-Long CPU Cable – A Key Feature
| Feature | Specification |
| CPU Cable Length | 60 cm – ultra-long |
| Motherboard Cable Length | 31 cm |
✅ The ultra-long 60cm CPU cable provides flexibility for cable routing and clean cable management inside your Lenovo chassis.
Why This Connector is Different:
Standard ATX power supplies use a 20-pin or 24-pin motherboard connector. Lenovo TFX desktops use a proprietary 10-pin connector with a different pinout and physical configuration. Do not attempt to force a standard ATX power supply into this motherboard.
Special Features – Quality & Performance
| Feature | Benefit |
| Quality Guaranteed | Stable performance – reliable operation |
| 100% Tested | Each unit tested before shipping |
| TFX Form Factor | Specifically designed for Lenovo TFX chassis |
| Ultra-Long CPU Cable | 60cm – easy installation and clean routing |
| Universal Input | 110-220V – works worldwide |
✅ Quality Guaranteed and Stable Performance, Please Rest Assured to Buy.
Physical Size – Measure Before You Order
Even if the model number matches, it‘s always a good idea to check the size.
| Dimension | Measurement |
| Length | 150 mm |
| Width | 64 mm |
| Height | 82 mm |
This TFX form factor is specifically designed to fit inside Lenovo TFX chassis.
Why Choose This 180W Replacement Power Supply?
| Feature | Benefit |
| Lenovo TFX Specific | Designed for Qitian M series, Tianyi 510, H3060, G5060 |
| Quality Guaranteed | Stable performance – tested and reliable |
| Direct Replacement | No adapter or modification needed – works right out of the box |
| Universal Input | 110-220V – works worldwide |
| Ultra-Long CPU Cable | 60cm – flexible routing and clean cable management |
| Wide Compatibility | Replaces 5+ different Lenovo model numbers |
| Proprietary 10-pin | Matches Lenovo TFX motherboard specification |
| 1-Year Warranty | Protected by Nadalan‘s 1-year return/exchange policy |
| Fast Global Shipping | Air freight to most countries in approximately 10 days |
Compatibility Note:
This power supply is suitable for:
- Lenovo Qitian M610, M710s, M510, M310, M415, M425, M410, B415 TFX
- Lenovo Tianyi 510 (dedicated)
- Lenovo H3060, G5060
- Lenovo HK280-72PP TFX 10-pin power supply systems
Installation Tips
- Power down and unplug your Lenovo desktop completely.
- Open the case – Lenovo TFX cases typically have thumbscrews on the back.
- Disconnect cables from the old power supply – note the 10-pin and 4-pin connectors.
- Take a photo of the connector layout before disconnecting – this is critical due to the proprietary 10-pin connector.
- Remove the old PSU – usually held by 3-4 screws on the back of the case.
- Install the new PSU – secure with screws, then reconnect all cables following your photo.
- The ultra-long 60cm CPU cable provides flexibility for cable routing – use it for clean management.
- Test before closing – power on to ensure the system boots properly.
Frequently Asked Questions
Q1: What Lenovo models is this power supply compatible with?
Qitian: M610, M710s, M510, M310, M415, M425, M410, B415 TFX
Tianyi: 510 (dedicated)
H Series: H3060, G5060
Q2: What are the compatible power supply model numbers?
HK280-72PP, PA-2181-2, PCG010, FSP180-20TGBAB, HK280-73PP.
Q3: What are the compatible part numbers?
00PC745.
Q4: What connectors does this power supply have?
1x 10-pin (proprietary Lenovo TFX connector) and 1x 4-pin CPU connector.
Q5: What is the CPU cable length?
60cm – ultra-long for flexible routing.
Q6: What is the motherboard cable length?
31cm.
Q7: What are the physical dimensions?
150mm × 64mm × 82mm.
Q8: What is the rated power?
180W.
Q9: What input voltage does it support?
110-220V.
Q10: Will this work with Lenovo Qitian M610?
Yes – M610 is specifically listed as compatible.
Q11: Will this work with Lenovo Qitian M710s?
Yes – M710s is specifically listed as compatible.
Q12: Will this work with Lenovo Tianyi 510?
Yes – Tianyi 510 is specifically listed as compatible.
Q13: Will this work with a standard ATX motherboard?
No. This uses a Lenovo proprietary 10-pin connector and is designed specifically for Lenovo TFX desktops.
Q14: What is the warranty period?
Nadalan offers a 1-year warranty on this power supply.
Q15: How long does shipping take?
Approximately 10 days by air freight. Tax and duty included for most countries.
Q16: Do you offer wholesale pricing?
Yes. Nadalan welcomes bulk orders and corporate partnerships. Contact us to discuss custom negotiations and volume pricing.
Still Not Sure? Contact Us
Lenovo TFX power supplies use proprietary connectors, so compatibility is critical. If you‘ve checked the model numbers but still aren’t 100% sure, don‘t guess. Send us a photo of your original power supply’s label and the connectors, and we will confirm compatibility for you.
