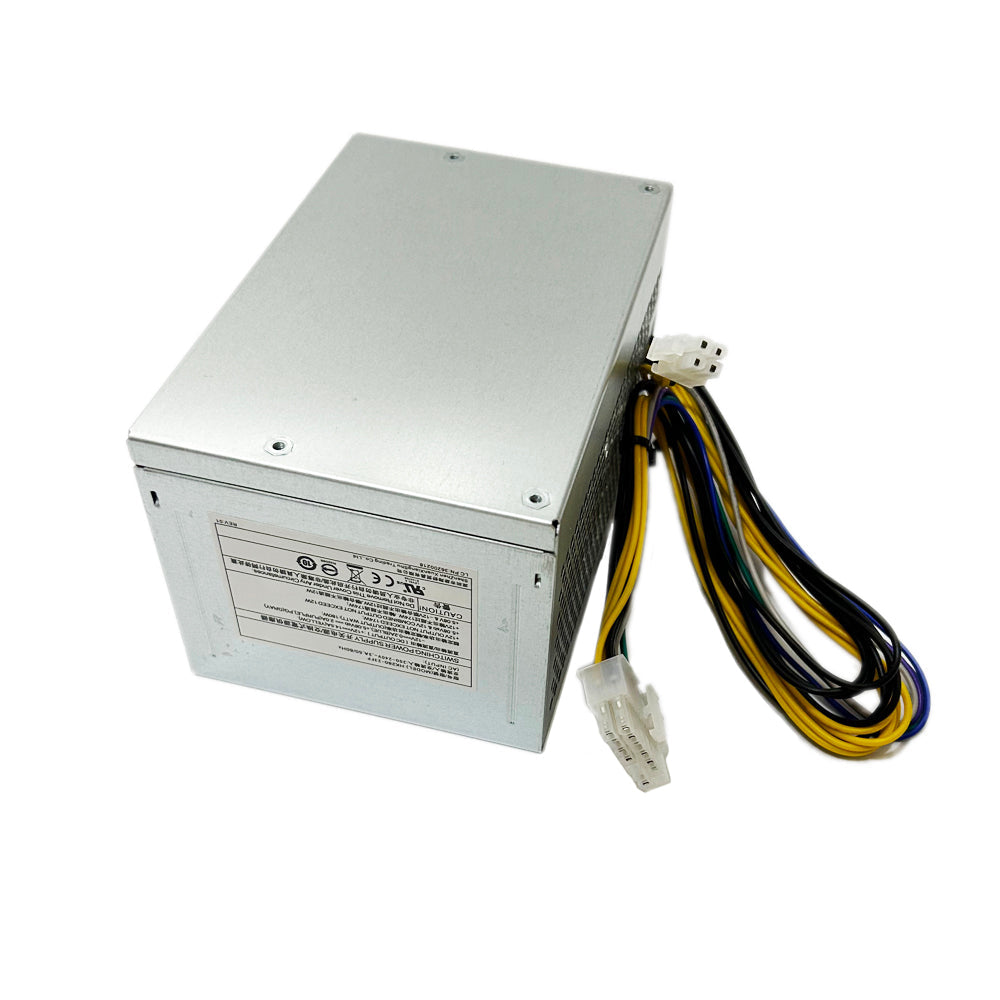

Lenovo Desktop Power Supply Replacement Guide – 180W HK280-23FP Compatibility
Share
Product link: https://nadalan-power.com/products/180w-lenovo-power-supply-hk280-23fp
Is Your Lenovo Desktop Having Power Issues? Here‘s Your 180W Replacement Guide
If you own a Lenovo desktop with a Q77, Q75, B75, A75, Q87, H81, B85 , or a Lenovo M series (M6300, M6400, M6408, M6475, A6800) desktop and are experiencing power failures, random shutdowns, or simply need a spare power supply, you’ve come to the right place.
Lenovo uses specific power supply designs for their business desktop lines. Finding the correct replacement can be challenging because these units often use proprietary 14-pin connectors rather than standard ATX connectors.
This guide will help you quickly identify if the 180W HK280-23FP Power Supply is the right match for your Lenovo computer.
Quick Compatibility Check
This 180W power supply is specifically designed for the following Lenovo models and chipsets:
Compatible Chipsets / Motherboards:
| Chipset Series | Compatible Models |
| Lenovo Q Series | Q77, Q75, Q87 |
| Lenovo B Series | B75, B85 |
| Lenovo H Series | H81 |
| Lenovo A Series | A75 |
Compatible Lenovo Desktop Models:
| Series | Compatible Models |
| Lenovo M Series | M6300, M6400, M6408, M6475 |
| Lenovo A Series | A6800 |
⚠️ Important: This power supply uses a proprietary 14-pin motherboard connector. It will NOT work with standard ATX motherboards. Please verify your motherboard connector type before ordering.
Compatible Power Supply Models
This power supply replaces the following Lenovo power supply models:
| Model Number | Compatible? |
| PCB037-EL0G | ✅ Yes |
| PCB037 | ✅ Yes |
| PCB038 | ✅ Yes |
| HK280-23FP | ✅ Yes (main model) |
| HK280-25FP | ✅ Yes |
| PS-3181-3 | ✅ Yes |
| 36200218 | ✅ Yes |
💡 Tip: Simply remove your old power supply and check the sticker on top. If you see any of the model numbers listed above, this replacement will work perfectly.
Key Specifications at a Glance
| Specification | Detail |
| Power Output | 180W |
| Dimensions (L×W×H) | 15 × 10 × 8.5 cm (150 × 100 × 85 mm) |
| Form Factor | Lenovo proprietary desktop |
| Input Voltage | 100-240V (Universal) |
This 180W output provides reliable power for Lenovo‘s business desktops, ensuring stable performance for office tasks and daily productivity.
Connector Configuration – The Most Important Check
This power supply uses a Lenovo proprietary 14-pin motherboard connector. Do not attempt to use this on a standard ATX motherboard.
| Interface Type | Connector | Quantity |
| Motherboard Main Power | 14-pin (proprietary) | 1 |
| CPU Power | 4-pin | 1 |
⚠️ Special Note: This power supply has no SATA connectors. It is designed specifically for Lenovo systems that draw power for drives directly from the motherboard. Please verify your system‘s drive power requirements before ordering.
Why This Connector is Different:
Standard ATX power supplies use a 20-pin or 24-pin motherboard connector. Lenovo uses a proprietary 14-pin connector with a different pinout and smaller physical size. Do not attempt to force a standard ATX power supply into this motherboard.
Physical Size – Measure Before You Order
Even if the model number matches, it‘s always a good idea to check the size.
| Dimension | Measurement |
| Length | 15 cm (150 mm) |
| Width | 10 cm (100 mm) |
| Height | 8.5 cm (85 mm) |
This specific size is designed to fit perfectly inside Lenovo desktop chassis that use this proprietary form factor.
Why Choose This 180W Replacement Power Supply?
| Feature | Benefit |
| Lenovo Specific | Designed for Lenovo Q77, Q75, B75, A75, Q87, H81, B85 chipset systems |
| Direct Replacement | No adapter or modification needed – works right out of the box |
| Universal Input | 100-240V – works worldwide (plug adapter may be needed) |
| Wide Compatibility | Replaces 7+ different Lenovo model numbers |
| Proprietary 14-pin | Matches Lenovo‘s unique motherboard connector |
| 1-Year Warranty | Protected by Nadalan‘s 1-year return/exchange policy |
| Fast Global Shipping | Air freight to most countries in approximately 10 days |
Compatibility Note:
⚠️ Important considerations:
- This power supply uses a proprietary 14-pin motherboard connector – not standard ATX
- No SATA connectors – drives must be powered through the motherboard
- Please verify your original power supply‘s connector type before ordering
Installation Tips
- Power down and unplug your Lenovo desktop completely.
- Open the case – Lenovo business desktops typically have thumbscrews on the back.
- Disconnect cables from the old power supply – note where each connector goes (14-pin main, 4-pin CPU).
- Take a photo of the connector layout before disconnecting – this is critical due to the proprietary 14-pin connector.
- Remove the old PSU – usually held by 3-4 screws on the back of the case.
- Install the new PSU – secure with screws, then reconnect all cables following your photo.
- Test before closing – power on to ensure the system boots properly.
Frequently Asked Questions
Q1: What Lenovo chipsets is this power supply compatible with?
Compatible with Lenovo Q77, Q75, B75, A75, Q87, H81, and B85 chipsets.
Q2: What Lenovo desktop models is this compatible with?
Compatible with Lenovo M6300, M6400, M6408, M6475, and A6800.
Q3: What are the compatible power supply model numbers?
PCB037-EL0G, PCB037, PCB038, HK280-23FP, HK280-25FP, PS-3181-3, 36200218.
Q4: What connectors does this power supply have?
It includes: 1x 14-pin (proprietary Lenovo motherboard connector) and 1x 4-pin CPU connector.
Q5: Does this power supply have SATA connectors?
No. This power supply has no SATA connectors. Drives must be powered through the motherboard.
Q6: What are the physical dimensions?
15 cm × 10 cm × 8.5 cm (150 × 100 × 85 mm).
Q7: Will this work with a standard ATX motherboard?
No. This uses a Lenovo proprietary 14-pin connector and will NOT work with standard ATX motherboards.
Q8: Will this work with Lenovo ThinkCentre M series?
Please check your specific model number. This unit is designed for Q/Q/B chipset systems and M6300/M6400 series. For ThinkCentre M700/M800/M900 series, please verify compatibility.
Q9: Is this a genuine Lenovo power supply?
This is a high-quality compatible replacement that meets or exceeds OEM specifications.
Q10: What is the warranty period?
Nadalan offers a 1-year warranty on this power supply.
Q11: How long does shipping take?
Approximately 10 days by air freight. Tax and duty included for most countries.
Q12: Do you offer wholesale pricing?
Yes. Nadalan welcomes bulk orders and corporate partnerships. Contact us to discuss custom negotiations and volume pricing.
Still Not Sure? Contact Us
Lenovo power supplies use proprietary connectors, so compatibility is critical. If you‘ve checked the model numbers but still aren’t 100% sure, don‘t guess. Send us a photo of your original power supply’s label and the connectors, and we will confirm compatibility for you.
