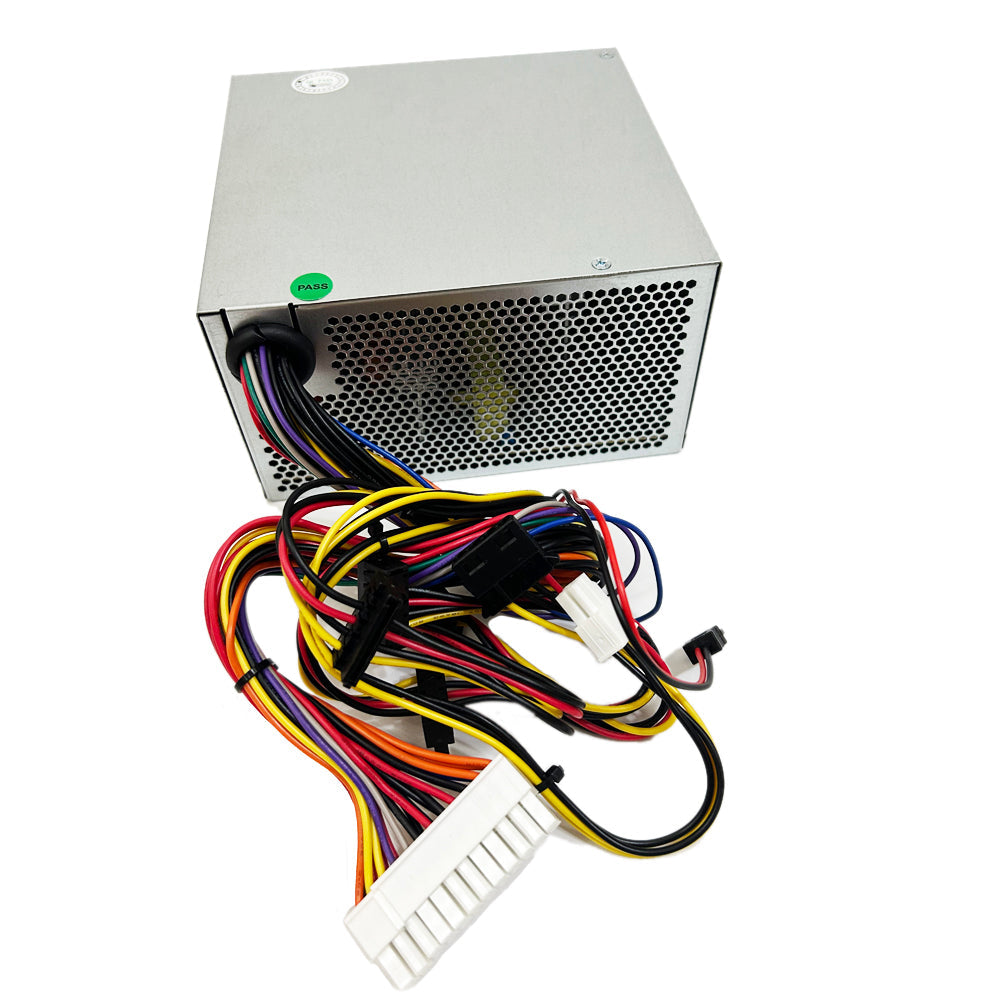

HP Desktop Power Supply Replacement Guide – 300W PCB230 Compatibility & Upgrade Options
Share
Product link:https://nadalan-power.com/products/300w-hp-desktop-power-supply-pcb230
Is Your HP Desktop Having Power Issues? Here‘s Your 300W Replacement & Upgrade Guide
If you own an HP desktop such as the 280 Pro G2, Pro 3330/3340/3380, or ProDesk 550/405 G2/400 G3 and are experiencing power failures, random shutdowns, or simply want to upgrade from a lower-wattage power supply, you’ve come to the right place.
This 300W power supply is unique because it is backward compatible with lower-wattage units that have the same interface and physical size. This means you can upgrade your older 180W HP power supply to this more powerful 300W unit for better system stability and future upgrade headroom.
This guide will help you quickly identify if the 300W PCB230 Power Supply is the right match for your HP computer.
Quick Compatibility Check
This 300W power supply is specifically designed for the following HP desktop models:
HP Pro Series:
| Series | Compatible Models |
| HP Pro 3000 Series | Pro 3330, 3340, 3380 (large chassis / MT) |
| HP Pro 3000 Series | 3085MT (large chassis) |
| HP 280 Series | 280 Pro G2 desktop |
HP ProDesk Series:
| Series | Compatible Models |
| HP ProDesk 400 Series | 400 G3 |
| HP ProDesk 405 Series | 405 G2 |
| HP ProDesk 500 Series | 550 |
⚠️ Important: This is a standard desktop power supply designed for MT (Mini Tower) or large chassis HP desktops. It may not fit SFF (Small Form Factor) models.
Compatible Power Supply Models
This 300W power supply replaces the following models:
| Model Number | Compatible? |
| D11-300P1A | ✅ Yes |
| PCB230 | ✅ Yes (main model) |
| HP-XD301MGF | ✅ Yes |
| FH-XD301MYR-1 | ✅ Yes |
| FH-XD301MYF-1 | ✅ Yes |
| DPS-300AB-73B | ✅ Yes |
| DPS-300AB-72A | ✅ Yes |
| PCB009 | ✅ Yes |
Also compatible with (upgrade from lower-wattage models):
| Lower-Wattage Model | Upgrade to 300W? |
| D13-180P1A | ✅ Yes |
| HK280-11FP | ✅ Yes |
| DPS-180AB-20 A | ✅ Yes |
| PCE018 | ✅ Yes |
| D14-180P1A | ✅ Yes |
| PCD009 | ✅ Yes |
💡 Upgrade Note: The high-power power supply is compatible with low-power power supplies of the same interface and appearance size. This means you can upgrade your 180W HP power supply to this 300W unit for more power headroom.
Compatible Part Numbers:
| Part Number | Compatible? |
| 667892-001 | ✅ Yes |
| 667893-001 | ✅ Yes |
| 667892-003 | ✅ Yes |
| 667893-003 | ✅ Yes |
| 633189-001 | ✅ Yes |
| 633190-001 | ✅ Yes |
| 849648-002 | ✅ Yes |
| 759763-001 | ✅ Yes |
Key Specifications at a Glance
| Specification | Detail |
| Power Output | 300W |
| Dimensions (L×W×H) | 150 × 140 × 85 mm |
| Form Factor | Standard desktop (ATX-like, MT/large chassis) |
| Input Voltage | 100-240V (Universal) |
| Protection Features | Overvoltage, overcurrent, overload protection |
This 300W output provides reliable power for HP‘s MT (Mini Tower) and large chassis desktops, with extra headroom for system upgrades.
Connector Configuration – Two Interface Types
This power supply comes in two interface types – both work the same way. Please select based on your specific needs:
Interface Type 1 (Standard):
| Interface Type | Connector | Quantity |
| Motherboard Main Power | 24-pin | 1 |
| CPU Power | 4-pin | 1 |
| SATA Power | SATA | 4 |
Interface Type 2 (Alternative):
| Interface Type | Connector | Quantity |
| Motherboard Main Power | 24-pin | 1 |
| CPU Power | 4-pin | 1 |
| SATA Power | SATA | 2 |
| Small Floppy Drive | Small floppy drive interface | 1 |
✅ Note: This power supply is divided into two types of interfaces, but both have the same effect when used. Please select the interface type based on your specific requirements.
Why This Power Supply Stands Out
| Feature | Benefit |
| Universal Compatibility | Works with multiple HP Pro, ProDesk, and 280 series |
| Upgrade Capability | Replaces lower-wattage (180W) units with same form factor |
| Multiple Protections | Overvoltage, overcurrent, and overload protection |
| Solid-State Purification | Adopts solid-state purification technology – output current is purer |
| Two Interface Options | Choose Type 1 (4x SATA) or Type 2 (2x SATA + floppy) |
| Direct Replacement | No adapter or modification needed – works right out of the box |
| Universal Input | 100-240V – works worldwide |
| 1-Year Warranty | Protected by Nadalan‘s 1-year return/exchange policy |
| Fast Global Shipping | Air freight to most countries in approximately 10 days |
Special Technology Note:
Solid-state purification technology – The output current is purer, providing cleaner power to your computer components. This results in better system stability, reduced electrical noise, and longer component life.
Upgrade Compatibility Note:
The high-power power supply is compatible with low-power power supplies of the same interface and appearance size.
If your current HP desktop has a 180W power supply (such as D13-180P1A, HK280-11FP, DPS-180AB-20 A, PCE018, D14-180P1A, or PCD009), you can upgrade to this 300W unit for:
- More power headroom for additional components
- Better stability under load
- Future upgrade capability
Physical Size – Measure Before You Order
Even if the model number matches, it‘s always a good idea to check the size.
| Dimension | Measurement |
| Length | 150 mm |
| Width | 140 mm |
| Height | 85 mm |
This standard desktop size is designed for HP MT (Mini Tower) and large chassis desktops.
Installation Tips
- Power down and unplug your HP desktop completely.
- Open the case – HP MT cases typically have thumbscrews on the back.
- Disconnect cables from the old power supply – note where each connector goes.
- Check your interface type – determine if you need Type 1 (4 SATA) or Type 2 (2 SATA + floppy).
- Take a photo of the connector layout before disconnecting.
- Remove the old PSU – usually held by 3-4 screws on the back of the case.
- Install the new PSU – secure with screws, then reconnect all cables.
- Test before closing – power on to ensure the system boots properly.
Frequently Asked Questions
Q1: What HP models is this 300W power supply compatible with?
Compatible with HP 280 Pro G2, Pro 3330/3340/3380/3085MT (large chassis), ProDesk 550, 405 G2, and 400 G3.
Q2: What are the compatible power supply model numbers?
D11-300P1A, PCB230, HP-XD301MGF, FH-XD301MYR-1, FH-XD301MYF-1, DPS-300AB-73B, DPS-300AB-72A, PCB009.
Q3: Can I use this to replace my 180W HP power supply?
Yes. This high-power unit is compatible with lower-wattage units (D13-180P1A, HK280-11FP, DPS-180AB-20 A, PCE018, D14-180P1A, PCD009) that have the same interface and appearance size.
Q4: What are the two interface types?
- Type 1: 24-pin + 4-pin CPU + 4x SATA
- Type 2: 24-pin + 4-pin CPU + 2x SATA + 1x small floppy drive interface
Both have the same effect when used – choose based on your needs.
Q5: What are the physical dimensions?
150mm × 140mm × 85mm.
Q6: What special technology does this power supply use?
It uses solid-state purification technology, which makes the output current purer for better system stability.
Q7: What protection features does it have?
Overvoltage, overcurrent, and overload protection – multiple protections for safe operation.
Q8: Will this work with HP SFF (Small Form Factor) desktops?
This unit is designed for MT (Mini Tower) or large chassis desktops. It likely will not fit SFF cases.
Q9: What is the warranty period?
Nadalan offers a 1-year warranty on this power supply.
Q10: How long does shipping take?
Approximately 10 days by air freight. Tax and duty included for most countries.
Q11: Do you offer wholesale pricing?
Yes. Nadalan welcomes bulk orders and corporate partnerships. Contact us to discuss custom negotiations and volume pricing.
Still Not Sure? Contact Us
If you‘ve checked the model numbers but still aren’t 100% sure about compatibility, don‘t guess. Send us a photo of your original power supply’s label, and we will confirm compatibility for you.
